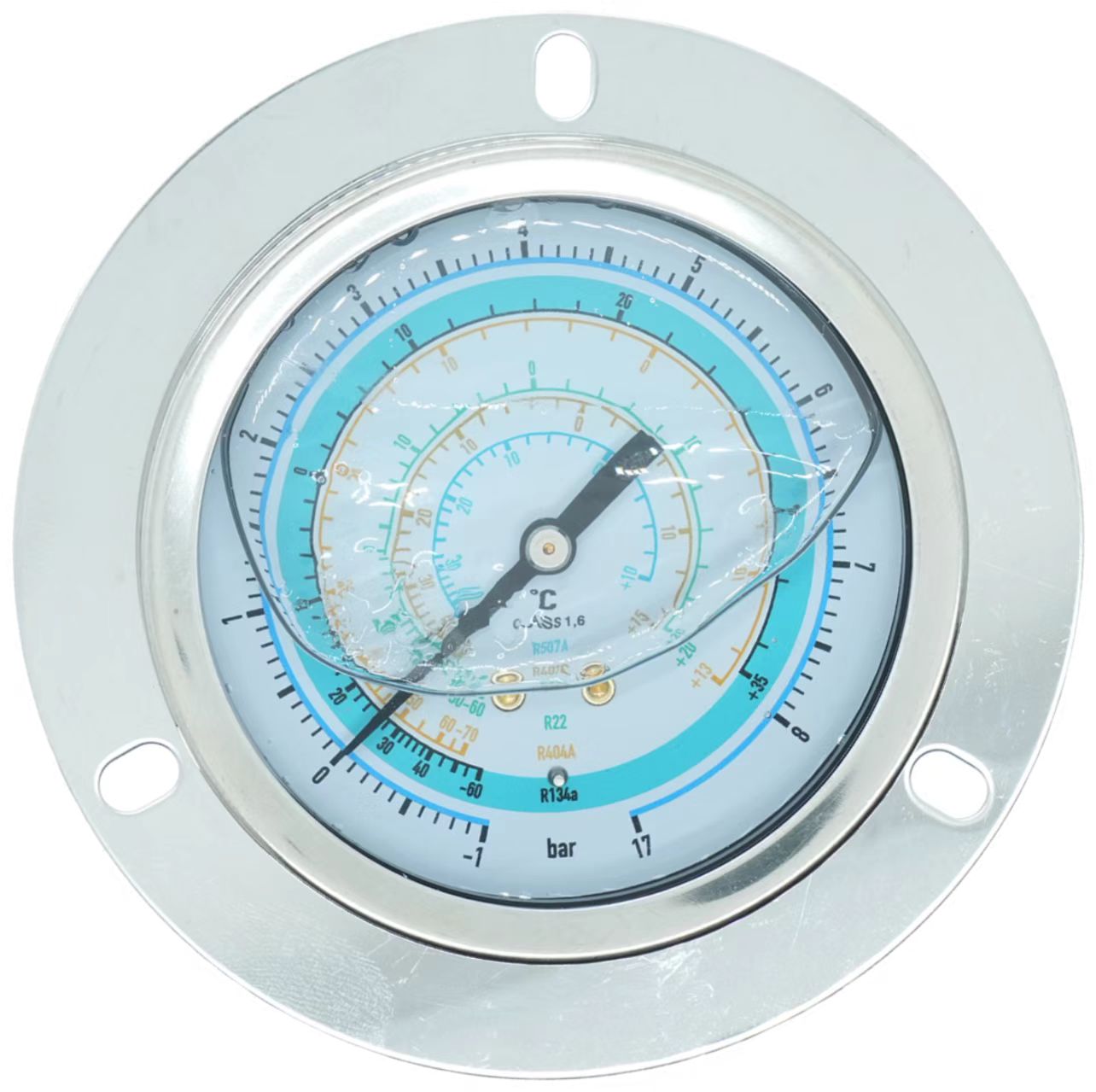

YN80 Axial Front Anti-vibration Refrigerant Gauge R507-17bar
YN80 Axial Front Anti-vibration Refrigerant Gauge R507-17bar - Anti-vibration Refrigerant Pressure Gauge Series Products
Product Categories
YN80 Axial Front Anti-vibration Refrigerant Gauge R507-17bar
YN80 Axial Front Anti-vibration Refrigerant Gauge R507-17bar - Anti-vibration Refrigerant Pressure Gauge Series Products
Main Features
Anti-vibration design
High precision measurement
Multiple overall dimensions available
Multiple installation types available
Quick Specifications
±1.0%F.S ±1.6%F.S ±2.5%F.S
Measurement Accuracy
IP65
Protection Level
Product Specifications
Overall Dimensions40、50、60、70、80、90、100mm
Measurement Accuracy±1.0%F.S ±1.6%F.S ±2.5%F.S%
Protection LevelIP65
Shell Material304 Stainless Steel
Thread Connection1/8"NPT 7/16-20UNF 5/16-24UNF
Installation TypeRadial/Axial/Axial Front/Radial Rear
Pressure Range17barbar
RefrigerantR507
Operating Temperature-20°C ~ +60°C°C
Dial ColorWhite dial with green and red arcs
Pointer ColorBlue pointer
Anti-vibration PerformanceExcellent
